Custom shape cut

We can provide a custom shape cut for most of our products. If you need help to modify your file and add the Cut to shape information to your printed file purchase our Design Service  and we'll do it for you!


If you order a custom shape cut:

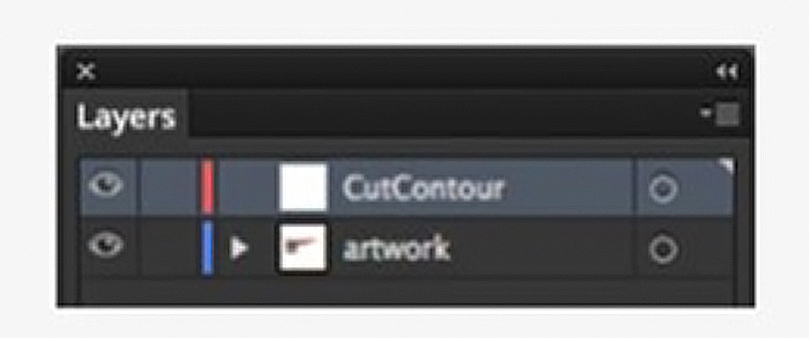

  • Create a separate layer named "CutContour" with a vector path, this will correspond to the cutting line

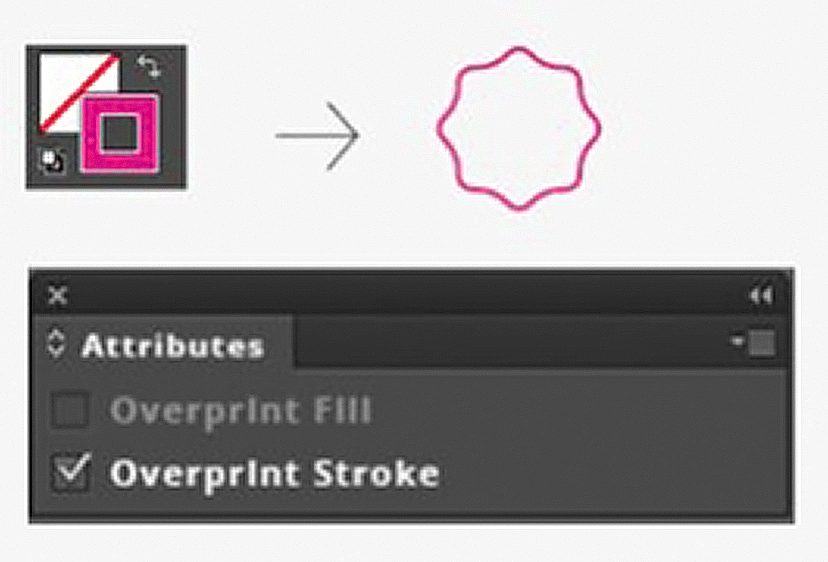

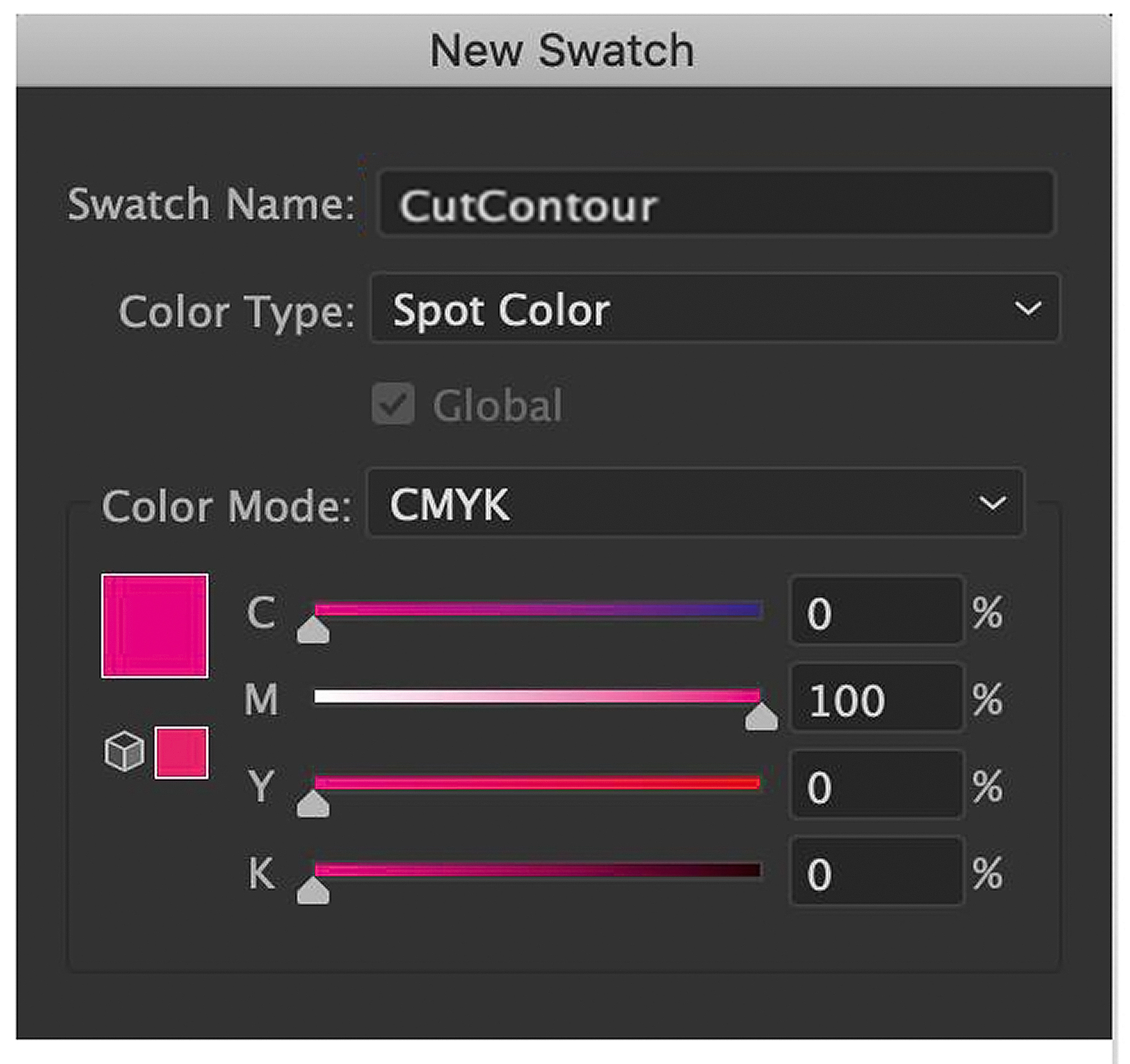

  • Assign to the path a spot colour named "CutContour" with 100% Magenta


  • Select overprint attribute only for the cut path


  • Pay attention to the specifications reported in the instructions for each product:
      • Cut path must be a vectorial continuous line
      • Follow the reccomandation regarding minimum radius and width for cut-to-shape elements
      • Don't create overly complex cut lines to avoid imprecise cutting
  • Insert the design to print on a separate layer named "artwork"
  • Bear in mind that the Magenta line won't get printed as it is a spot colour

Please note:

  1. To create the CutContour you need to use Adobe Illustrator or another vectorial design program
  2. More detailed directions are available in the instruction document that you can download from the product page

Please note that custom shape means an external cut different from a rectangular one (preselected shapes are not available, you can create the shape you want!)

Only for some products it's possible to insert also one second internal cut, always following directions given in the instruction document:

We can instead provide a pre-spaced cut for vinyls

If you still have any doubts, please contact us. We'll be happy to help !
